Ellon, Wateridgemuir

  • Details
  • Collections
  • Images

Filter

No Available Filters

Save Search

Log in to save your search

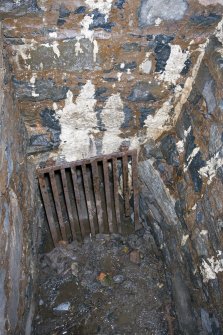

Interior. View looking along tailrace with grille in place.
DP 035615
 compare

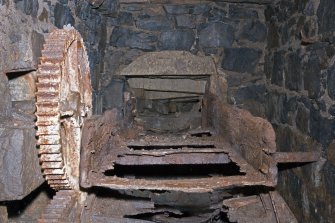

Interior. View looking along remains of wooden launder, small driven gear to left of image.
DP 035622
 compare

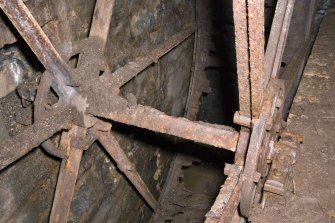

Interior. Detail view of square axle of waterwheel, remians of drum boards visible and bearing block to right of image.
DP 035628
 compare
View looking SW of elevation of roofless NE range on right. Access to waterwheel pit against wall in middle of image.
DP 035640
 compare

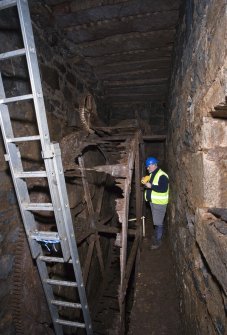

Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey.
DP 035664
 compare

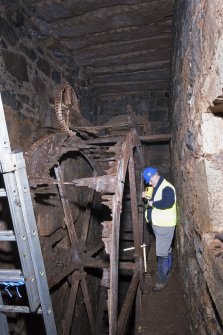

Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey. The small driven gear visible.
DP 035666
 compare
Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey. Measuring the waterwheel.
DP 035672
 compare
Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey. Measuring the waterwheel.
DP 035673
 compare

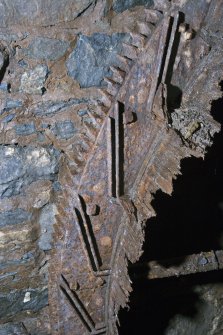

Interior. Detail of inside surface of waterwheel shroud. Note the cast slots in the wheel rim which took the wooden buckets and the rim spur gear wtith the driven gear above. The remains of the drum boards are visible.
DP 035617
 compare

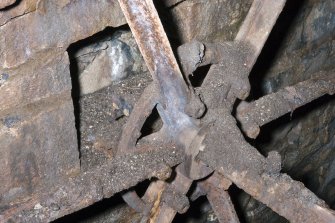

Interior. View of where flaunch/ hub and arms meet.
DP 035619
 compare

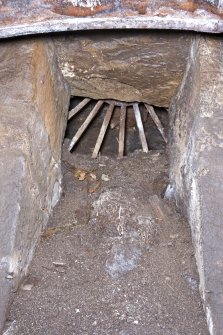

Interior. View looking up below rim spur gear and cast-iron wheel rim. Note the spokes of a flat belt drive pulley wheel located in the adjacent building (NE range).
DP 035621
 compare
View of SW elevation of NE roofless range showing access to waterwheel pit and slot in wall for lever to operate water regulator in launder (below ground).
DP 035643
 compare

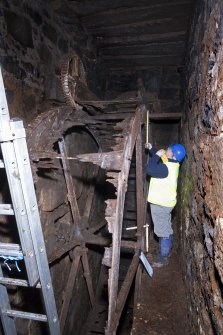

Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey.
DP 035667
 compare
Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey.
DP 035668
 compare

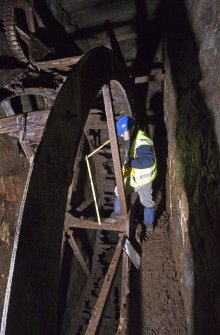

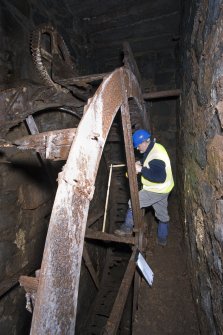

Interior. Waterwheel pit. View of J Borland of RCAHMS undertaking graphic survey.
DP 035670
 compare

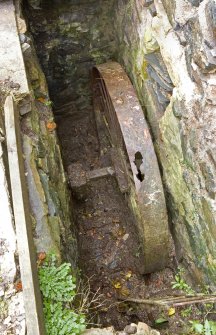

View of interior of N elevation of NE range, detail of flat belt pulley wheel driven straight from the waterwheel small driven gear and rim gear. This pulley wheel would have been attached to the pulley wheel mounted above (see DP 035646).
DP 035681
 compare

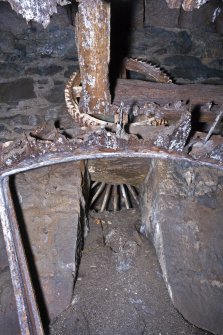

Interior. View looking up below rim spur gear with small driven gear above. This suggests that a threshing machine was driven by this wheel and its trnsmiision via the flat belt pulley wheel just visible.
DP 035620
 compare

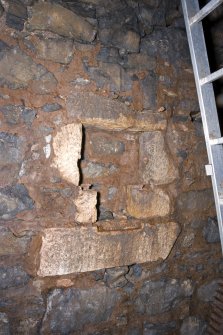

Interior. View of blocked opening in exterior wall of NE range at the tail race end of the pit.
DP 035627
 compare

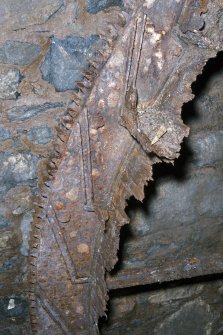

Interior. Detail of inside surface of wheel shroud. Note the cast slots in the wheel rim ,which held the wooden buckets, and the rim gear.The remains of the drum boards are visible.
DP 035616
 compare

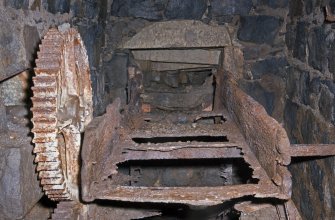

Interior. View looking along remains of wooden launder, small driven gear to left of image.
DP 035625
 compare
View of overhead shafting to belt wheel below. Mounted on the interior wall of the NE range operated by the subterranean waterwheel.
DP 035645
 compare
View of overhead shafting to water-driven flat belt pulley wheel below.
DP 035646
 compare

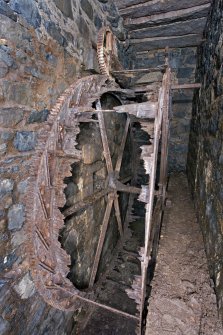

Interior. View of enclosed wheelpit looking towards launder. Note the rim gearing on the waterwheel.
DP 035611
 compare

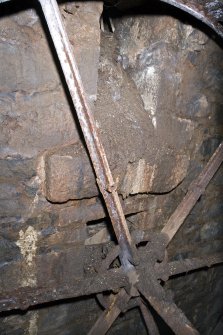

Interior. View of axle as it enters adjacent building (NE range).
DP 035618
 compare
