Lochaline, Silica Sand Mine

  • Details
  • Collections
  • Images

Filter

No Available Filters

Save Search

Log in to save your search

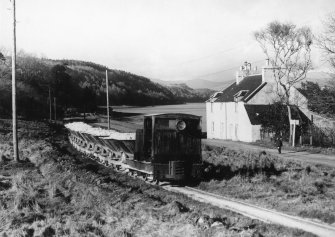

Scanned copy of view of train bringing sand along the shore of Lochaline from the mine to the processing plant at the West Pier (NM64SE 38.01)
SC 1072277
 compare
Scanned copy of view of scrape bucket underground, entering loader.
SC 1072286
 compare
View two mens stood beside waggons transporting silica sand to the surface at the Lochaline mine, Highland.
SC 1072295
 compare

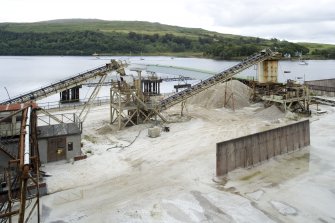

Elevated view from W of conveyors nos. 1 and 2
DP 029349
 compare
View from Eagle Screw plant of abandoned Adit No.5 and earlier crushing plant remains from E.
DP 029355
 compare

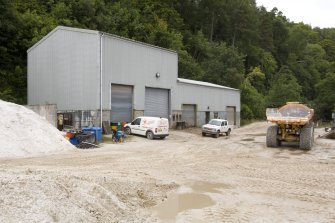

View of workshops and 30 ton dumper truck.
DP 029362
 compare
View from N of processed sand stock.
DP 029363
 compare
View of Morgenson SIzer and Hazemag crusher (below) at top of Conveyor No. 1, Conveyor No. 2 and Surge Bin.
DP 029364
 compare
Detailed view from W looking along Conveyor No. 4 which carries stockpiled processed sand to the boat over a weighbridge. Safety barrier and walkway on right.
DP 029369
 compare
View from E of Mine Office at NM 68001 44966 (former Ardtornish Estate house).
DP 029374
 compare

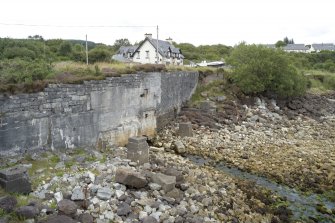

View of remnants of original 1950s processing area at the end of the narrow guage railway (NM67479 44285) to West Pier (NM67343 44235)
DP 029379
 compare
View of remnants of railway line carrying narrow gauge railway (NM67468 44281) to West Pier (NM67343 44235)
DP 029380
 compare
General view from N of temporary portable primary crusher, Vibbro Hopper, Drag Feeder and Conveyors 1 and 2.
DP 029391
 compare

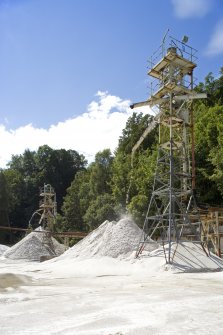

View of Tower Nos. 1 and 2 and processed sand stocks awaiting shipment.
DP 029409
 compare
Interior. Adit No. 7, underground roadway, looking towards working face.
DP 029416
 compare
Interior view of pillars and stalls 2km underground, Adit No.7, Lochaline silica mine.
DP 029427
 compare

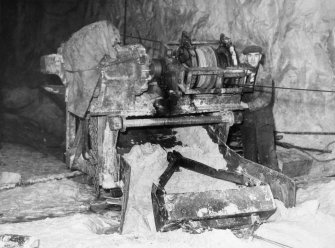

Scanned copy of view of scrape or slusher bucket face cleaning equipment underground.
SC 1072280
 compare
Scanned copy of view of waggons being loaded with silica sand underground.
SC 1072288
 compare
Scanned copy of view of processing plant and storage bins at West Pier
SC 1072293
 compare
View of Eagle screw and flotation plant and raw sand stock awaiting crushing. The raw stock to the left of the picture has just been extracted from the mine.
DP 029347
 compare

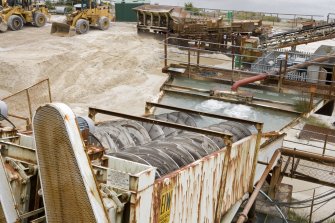

Elevated view of eagle screw, note red pipe in background carrying sand and water from the Allis Chalmers screen. The sand is carried to a higher level, agitated and washed and then sent to the Scrubber.
DP 029354
 compare
View of Eagle Screw plant from W.
DP 029358
 compare

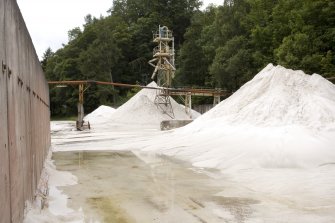

View from N of fines and standard sand stockpiles ready for shipping to Runcorn in Cheshire.
DP 029365
 compare
View from NW of Surge Bin (left) and Allis Chalmers Screen.
DP 029367
 compare
